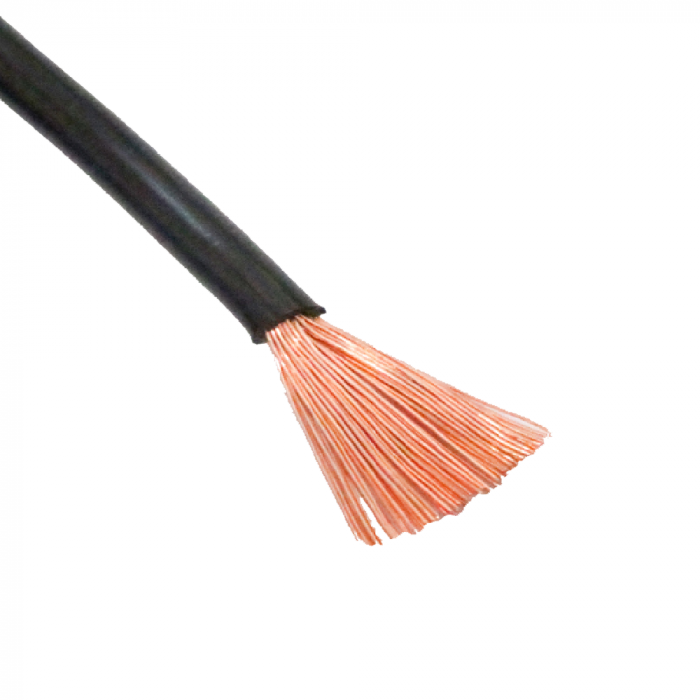

7/52 (10mm²) Single Core Full Gauge Copper Cable (90m Coil)
Available Packaging Options & Wholesale Rate Sheet
Choose standard sealed coils or exact custom cuts per meter and foot
Complete standard 90-meter factory sealed coil (295.3 ft). Ideal for full house wiring circuits.
Custom cut length per meter (1m = 3.28 ft). Perfect for specific solar or machinery runs.
Sold per running foot. Buy exact custom footage with zero wastage.
Technical Specifications & Engineering Details
Cable Specifications
Applications & Performance
Engineered for Main Service Drops & High-Amperage Circuits
7/52 (10mm²) is the primary cable specified by electrical engineers for linking the WAPDA/K-Electric energy meter to the building's main distribution breaker board. It provides substantial ampacity to easily carry multiple air conditioners, refrigeration equipment, and lighting circuits simultaneously.
Recommended Applications
- Meter to Main Distribution Board (DB): Clean, high-ampacity feed line carrying total residential or commercial building load.
- Heavy Inverter & Solar Main Line: Handles large AC input/output currents from 6kW to 12kW hybrid solar inverters.
- Heavy Agricultural & Commercial Pumps: Powers 5 HP to 10 HP electric motors and tube wells.
- Multi-Story Buildings: Riser wire distributing power across independent apartment sub-panels.
The Value of Full 52 Gauge Copper
Sub-gauge 10mm wire causes excessive line loss, leading to dimming lights when heavy appliances switch on and driving up your monthly bill. Anwar Cables uses only 99.9% pure refined copper for maximum thermal stability and low electrical resistance.
Why Anwar Cables vs Retail Market Brands (GM, Fast, Eagle)?
100% electrolytic pure copper rods with full conductor gauge guarantee. Micrometer verification welcome at our Lahore Bilal Gunj factory. Save 20%–30% by buying directly from the manufacturer.
Frequently Asked Questions
Technical engineering and buying answers regarding this cable specification
The metric cross-section of 7/52 (10mm²) Single Core Full Gauge Copper Cable (90m Coil) is 10.0 mm², corresponding to the traditional Pakistani gauge of 7/52. It is constructed from 7 Strands × 0.052" (1.32 mm) Pure Copper adhering to full-gauge conductor standards.
This cable has a continuous safe current rating of 45 – 52 Amperes (Up to 11,500 Watts (220V)). It is engineered for Main Entrance Supply from WAPDA meter to Main DB, 10kW Solar Installations, Commercial Panels and recommended for use with a 50A – 63A Main Breaker.
Direct from Anwar Cables Bilal Gunj factory, this product is priced at Rs 42,000 90m roll (approx. Rs 466.7 per meter). Contact us via WhatsApp for instant volume quotes and nationwide cargo dispatch.
We use 100% oxygen-free electrolytic grade copper rods with zero scrap or alloy mixtures. We encourage electricians and contractors to verify individual strand thickness with a digital micrometer at our physical Lahore shop & factory.
3/29 (1.5mm²) is a lighter cable rated for 10–12 Amps, ideal for ceiling fans and lighting circuits. 7/29 (2.5mm²) has 7 conductors rated for 18–20 Amps, essential for 1.5-ton inverter air conditioners, instant geysers, and high-draw 16A power sockets.
