10mm² Single Core Flexible Tinned Copper Solar DC Cable
Available Packaging Options & Wholesale Rate Sheet
Choose standard sealed coils or exact custom cuts per meter and foot
Complete standard 90-meter factory sealed coil (295.3 ft). Ideal for full house wiring circuits.
Custom cut length per meter (1m = 3.28 ft). Perfect for specific solar or machinery runs.
Sold per running foot. Buy exact custom footage with zero wastage.
Technical Specifications & Engineering Details
Cable Specifications
Applications & Performance

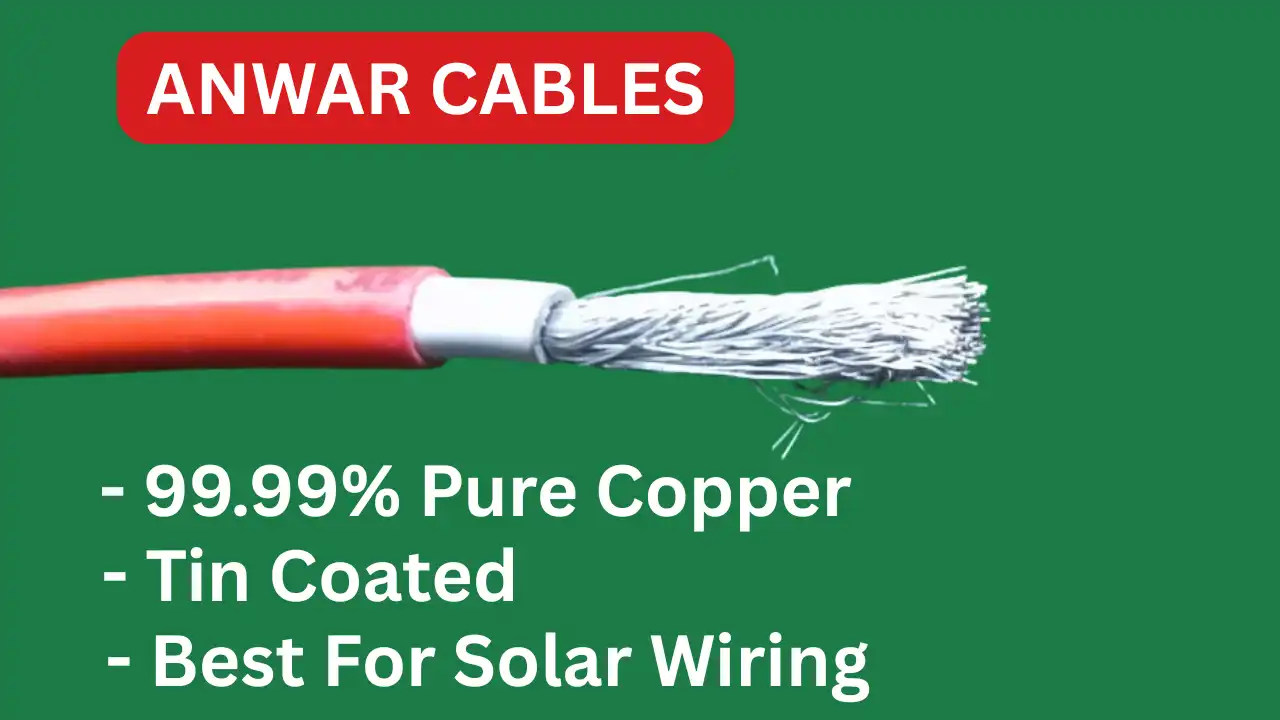

Engineered for Rooftop Solar PV & Zero Oxidation
Solar DC cables face extreme outdoor sunlight, UV radiation, and high roof temperatures. Our 10mm² solar cable features tin-coated pure copper strands that prevent copper oxidation and maintain zero-resistance contact with MC4 connectors for decades.
Recommended Applications
- Solar PV String Connections: Connects high-voltage series solar panel strings to hybrid and on-grid inverters.
- Commercial Solar Rooftops: Minimizes voltage drop across long runs (50m+) in industrial and commercial solar arrays.
- Solar Battery Bank Links: High-amperage DC link between solar charge controllers, lithium batteries, and inverters.
- Outdoor Weatherproof DC Transmission: Resists monsoon rain, UV radiation, and high rooftop heat.
Why Anwar Cables vs Retail Market Brands (GM, Fast, Eagle)?
100% electrolytic pure copper rods with full conductor gauge guarantee. Micrometer verification welcome at our Lahore Bilal Gunj factory. Save 20%–30% by buying directly from the manufacturer.
Frequently Asked Questions
Technical engineering and buying answers regarding this cable specification
The metric cross-section of 10mm² Single Core Flexible Tinned Copper Solar DC Cable is 10.0 mm², corresponding to the traditional Pakistani gauge of 7/52. It is constructed from 7 Strands × 0.052" (1.32 mm) Pure Copper adhering to full-gauge conductor standards.
This cable has a continuous safe current rating of 45 – 52 Amperes (Up to 11,500 Watts (220V)). It is engineered for Main Entrance Supply from WAPDA meter to Main DB, 10kW Solar Installations, Commercial Panels and recommended for use with a 50A – 63A Main Breaker.
Direct from Anwar Cables Bilal Gunj factory, this product is priced at Rs 492 meter (approx. Rs 492 per meter). Contact us via WhatsApp for instant volume quotes and nationwide cargo dispatch.
We use 100% oxygen-free electrolytic grade copper rods with zero scrap or alloy mixtures. We encourage electricians and contractors to verify individual strand thickness with a digital micrometer at our physical Lahore shop & factory.
3/29 (1.5mm²) is a lighter cable rated for 10–12 Amps, ideal for ceiling fans and lighting circuits. 7/29 (2.5mm²) has 7 conductors rated for 18–20 Amps, essential for 1.5-ton inverter air conditioners, instant geysers, and high-draw 16A power sockets.
